APXMAX Dual Series – Back Extension / Ab Crunch

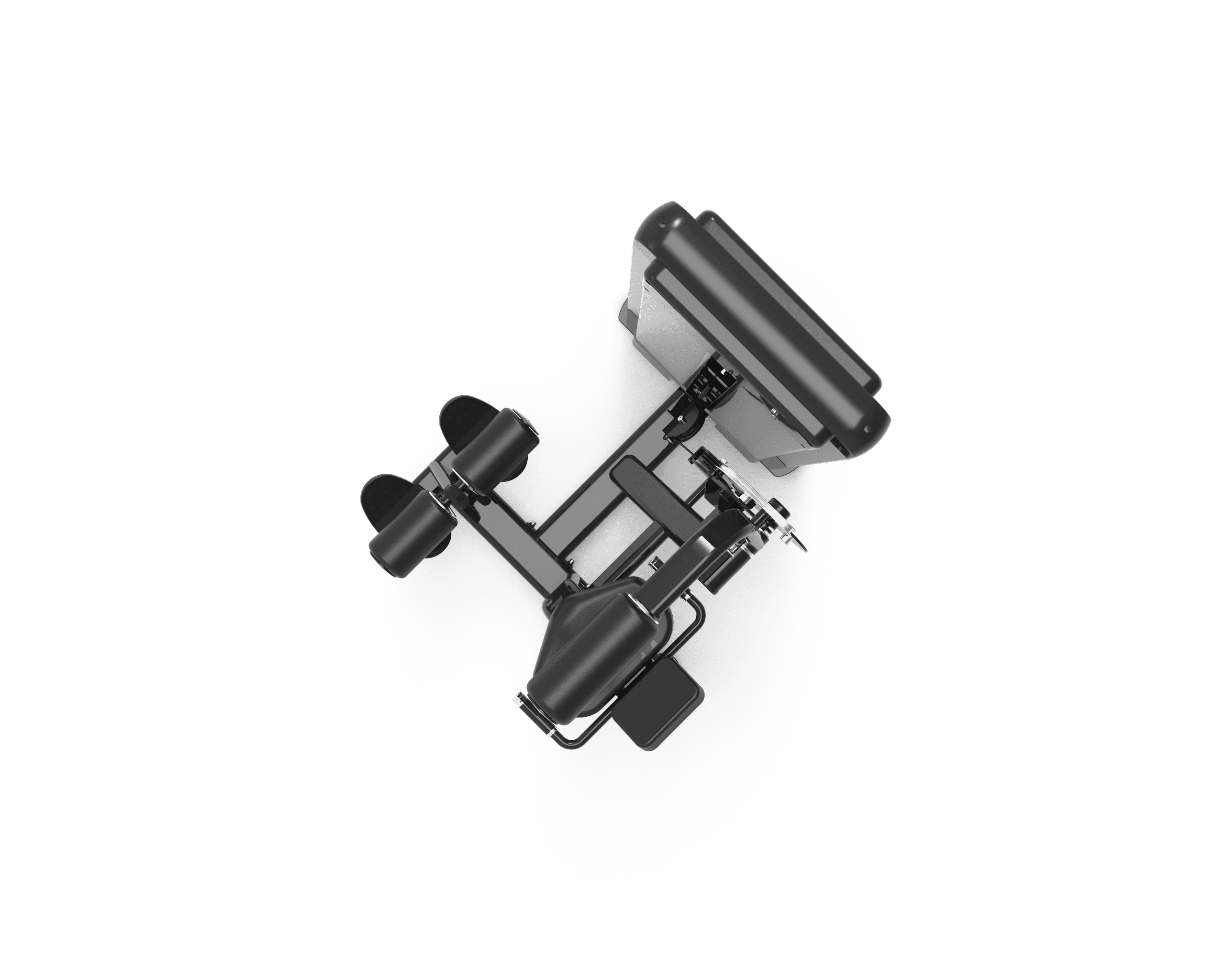

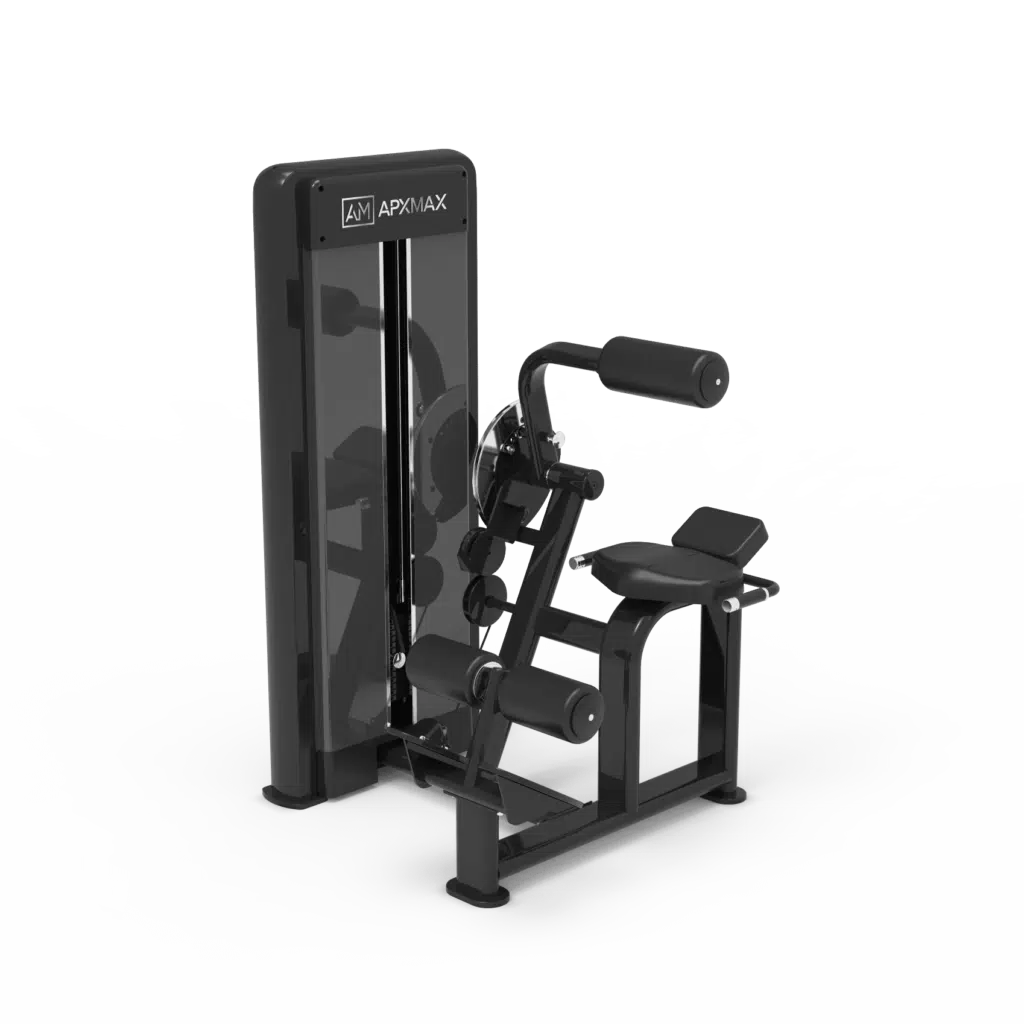

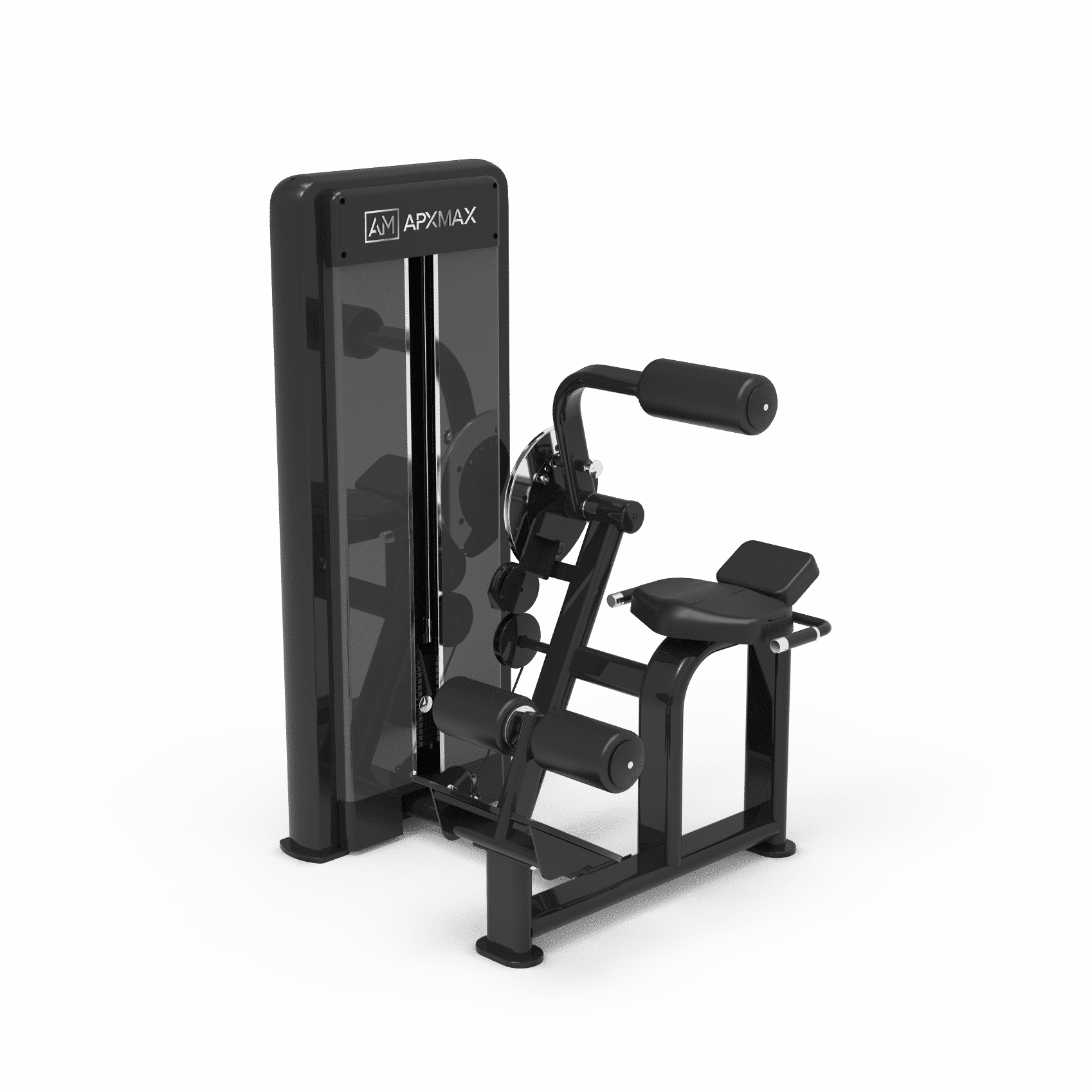

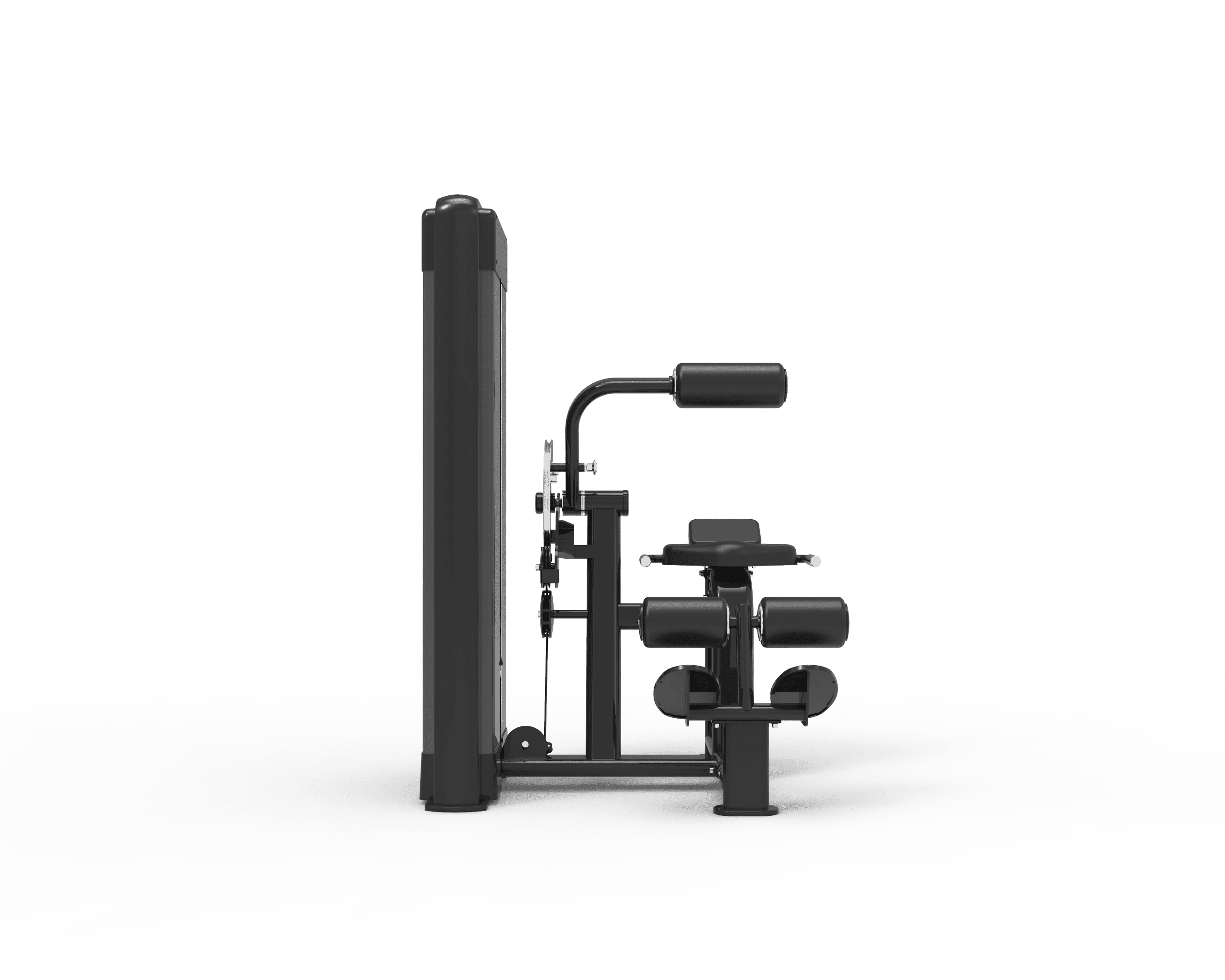

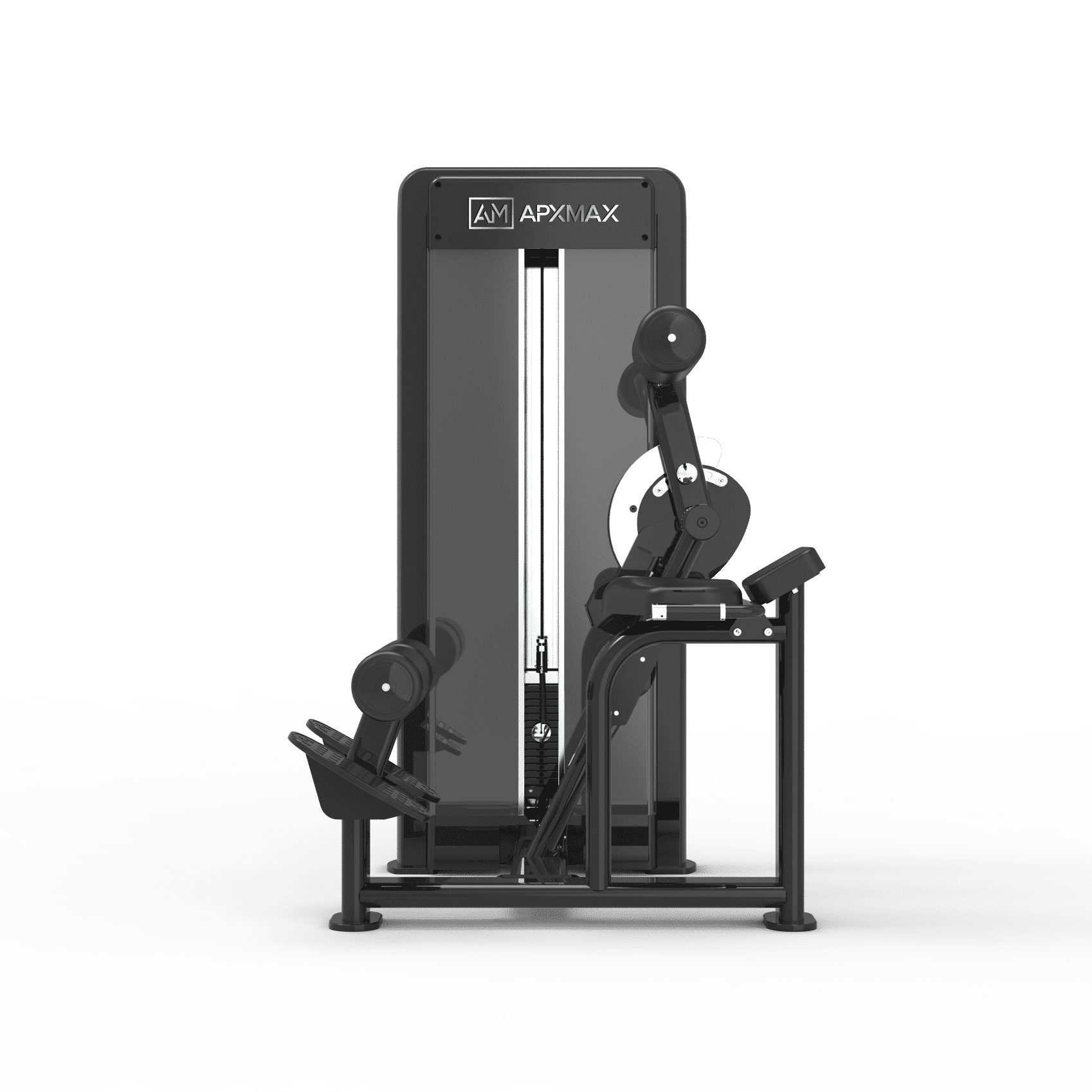

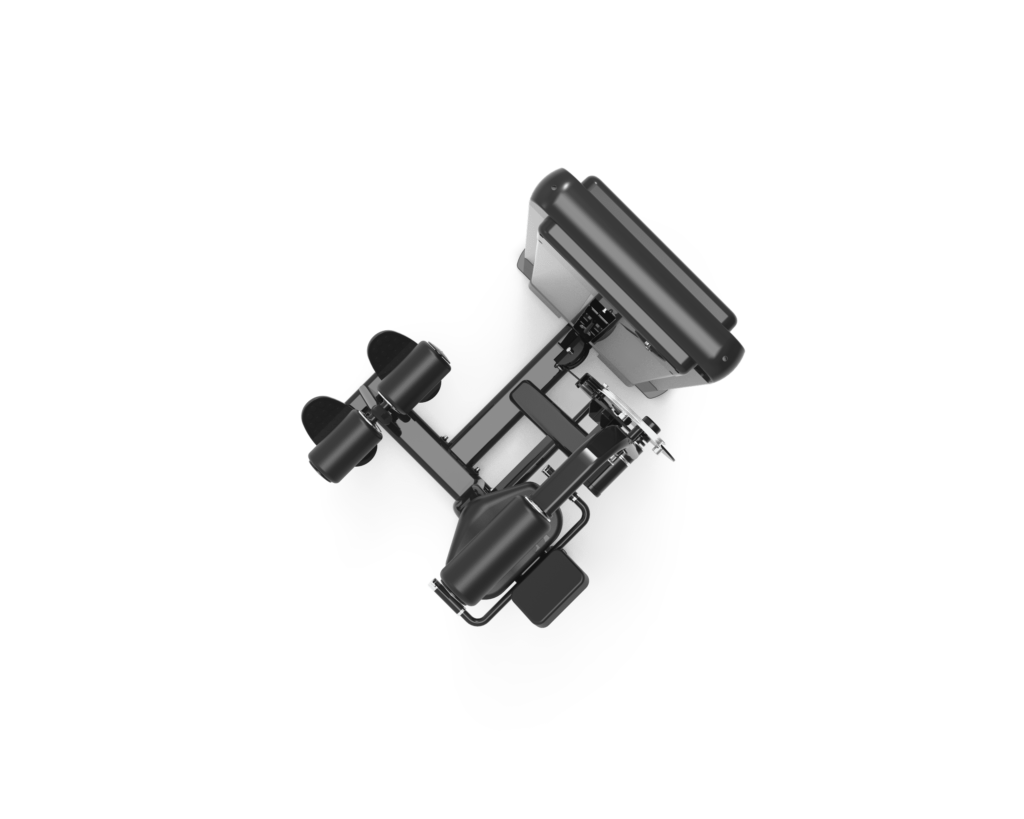

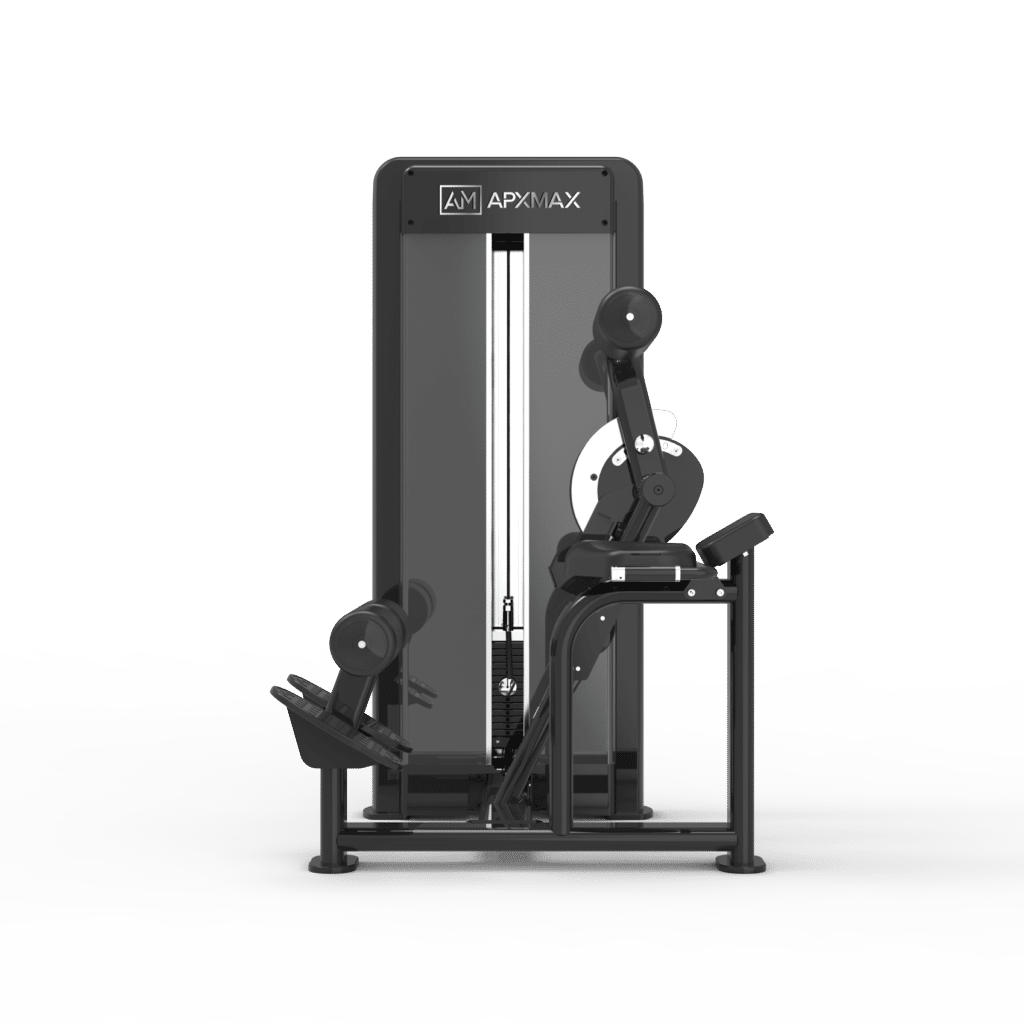

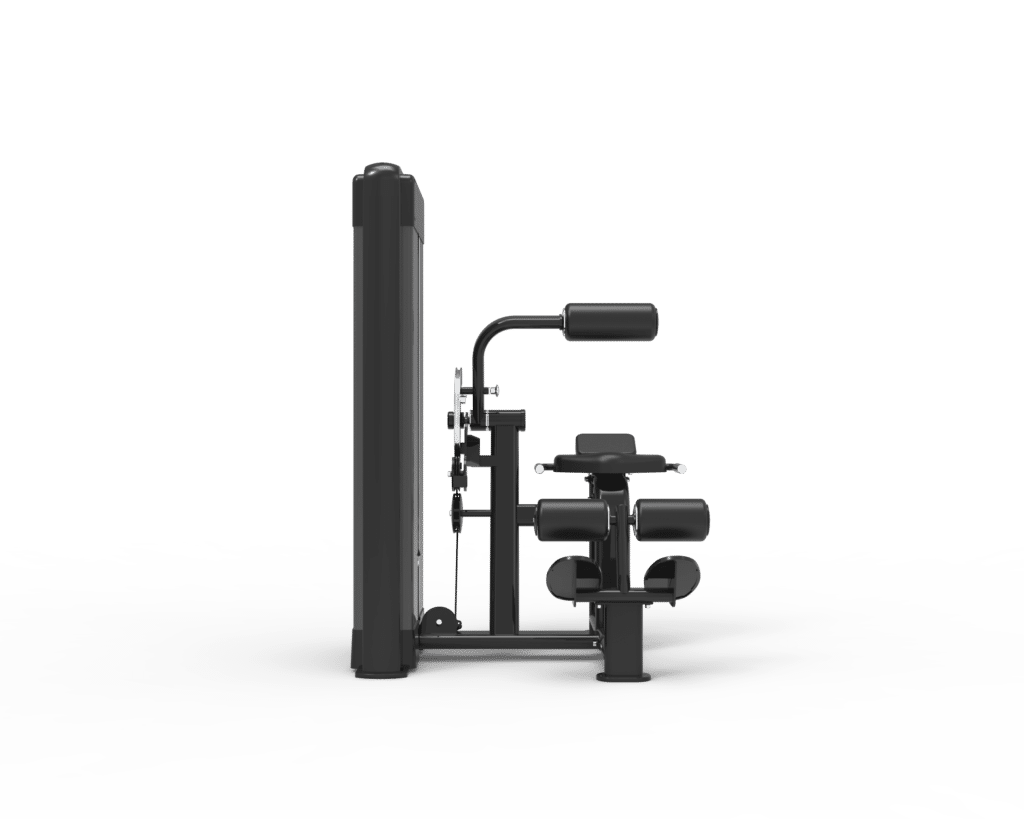

F6 Dual Series – Back Extension / Ab Crunch
The F6 Dual function models feature a main frame constructed from 118x75x3.0mm semi-elliptical pipe, functional area composed of 120x50x3.0mm flat oval pipe, movement arm using 80x40x3.0mm pipe, and joint pipe crafted from 50x100x3.0mm flat oval pipe. All pipes are Q235 qualified.
The dual function training allows for simple, fast, and safe conversion.
Ergonomic design ensures accurate trajectory and smooth operation, with two kinds of handle grips providing more exercise modes.
The full shroud is made of 4mm thick ABS virgin material, offering strength and durability.
The weight selector is conveniently located on the right side of the user, ensuring safety and convenience.
Cushions are filled with MC high resilience foam material, high-grade PU leather surface, and integral ABS guard cover.
The wire cable imported from Japan is a heavy duty coated wire capable of withstanding 1400kg tension.
Specs:
- Weight: 198kg
- Weight Stack: 70kg
- Footprint: L1130 x W1039 x H1625mm
Warranty
Pin and Plate Load Machines
Warranty Period :
Structural Steel Framework |
Lifetime |
Rotary Bearings, Weight Stacks, Pulleys, Guide rods, Structural moving parts |
2 years |
Cable, Linear Bearings, Springs |
1 year |
Upholstery, handgrips, all other items not listed |
6 Months |
Do Not:
- Use Outdoors
- Drop the weight stacks down during a rep, this can cause damage
- Use on uneven surfaces
Exclusions:
- Normal Wear and Tear
- damage from incorrect installation
Maintenance:
- Any damaged components should be replaced by a service technician
- Service the machine by a qualified service technician
- Regularly check for signs of wear
***We highly recommend this machine to be installed by a professional, incorrect installation may result in the warranty becoming void***
